Flange butterfly valve

Trench Fire butterfly valve

Valve Type No content
End conn. No content
Size Range No content
Valve Operator No content

Products in detail

Trench Fire butterfly valve

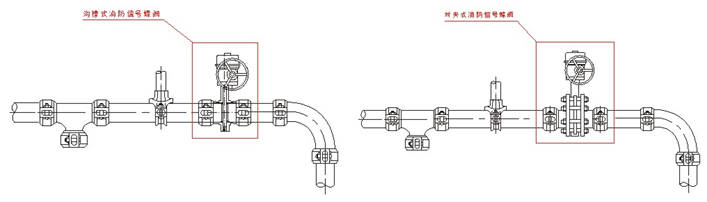

● Brief

Fire Butterfly groove between the United states and Germany are the introduction of similar design and manufacture of advanced products and a series of new connection valve. It has installed Express,simple, safe, reliable, not subiect to restrictions on the installation site, piping and valves to facilitate maintenance, noise and vibration have acertain perspective of the scope has to overcome the pipeline to connect the different axis arising from poor imition to solve the temperature difference expand with heat and contrad with cold have advantages. Widely used in transmission fluid to the drainage pipes, fire, air-conditioning, gas, petroleum, chemicals, water treatment, municipal, pipeline engineering and ship building role as the control fluid.


● Overall & Connection Dimensions

公称通径DN		L1	L2	L3	A	B	C	D	K	Φ	H	H1	H2	H3	N-Φ
Nominal diameter
mm	inch
50	2”	84.6	24.4	16	44.85	56.9	60	70	90	12.6		71.5	118.1	25	4-10
65	2.5”	97.8	24.4	16	57.5	71.95	75.8	70	90	12.6		16.5	121.2	25	4-10
80	3”	97.8	24.4	16	70.7	84.6	88.7	70	90	12.6		83.5	129	25	4-10
100	4”	111.3	24.4	16	92.55	109.7	114.1	70	90	15.77		101.5	150.4	25	4-10
125	5”	148.8	24.4	16	120	135.1	139.4	70	90	18.92		117.5	162.8	25	4-10
150	6”	148.8	24.4	16	145.7	160.5	165	70	90	18.92		132	193.1	25	4-10

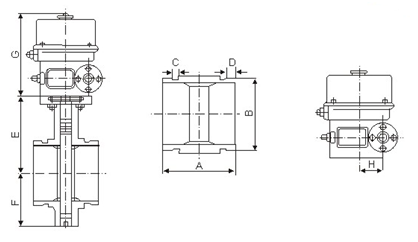

● Overall & Connection Dimensions

公称通径DN		A	B	C	D	E	F	G	H	L
Nominal diameter
mm	inch
50	2”	92	60	8	16	100	53	150	75	41
65	2.5”	102	76	8	16	108	61	150	75	41
80	3”	102	89	8	16	114	68	150	75	41
100	4”	116	114	10	16	136	85	150	75	41
125	5”	125	141	10	16	162	99	150	75	41
150	6”	125	165	10	16	174	111	150	85	63
200	8”	138	219	11	19	230	145	150	85	63

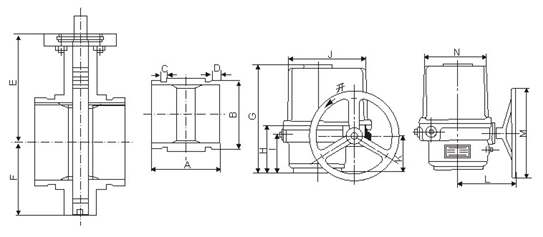

● Overall & Connection Dimensions

公称通径DN		A	B	C	D	E	F	G	H	I	J	K	L	M	N
Nominal diameter
mm	inch
50	2”	92	60	8	16	100	53	255	154	70	191	65	126	200	160
65	2.5”	102	76	8	16	108	61	255	154	70	191	65	126	200	160
80	3”	102	89	8	16	114	68	255	154	70	191	65	126	200	160
100	4”	116	114	10	16	136	85	255	154	70	191	65	126	200	160
125	5”	125	141	10	16	162	99	255	154	70	191	65	126	200	160
150	6”	125	165	10	16	174	111	255	154	70	191	65	126	200	160
200	8”	138	219	11	19	230	145	302	171	96	240	86	175	300	198
